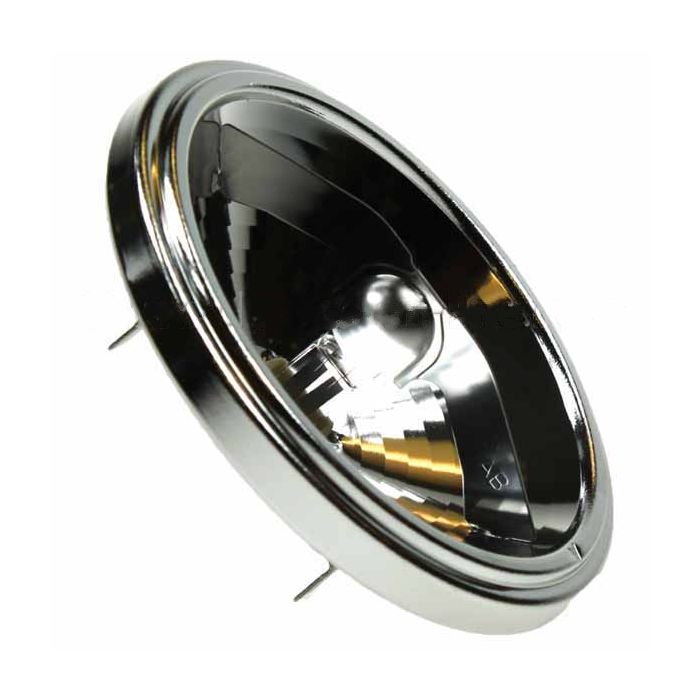

HALOGEN AR111 12V 50W 24 DEG G53

HALOGEN AR111 12V 50W 24° G53 is a versatile AR111 halogen reflector lamp designed for applications where high-quality, directional lighting is required. Its 24° beam angle provides controlled illumination, making it ideal for highlighting products, artwork, displays, architectural features and decorative areas.

Operating at 12V and 50W, the lamp uses a G53 2-pin base with 53mm pin spacing and is designed for compatible low-voltage AR111 fittings. Typical versions provide a warm white light around 3000K, creating an inviting and natural appearance while offering excellent colour rendering.

The aluminium reflector design helps direct light forward, making the lamp particularly suitable for retail shops, showrooms, museums, galleries, hotels, restaurants, residential interiors and general accent lighting. AR111 halogen lamps of this specification are also commonly dimmable when used with suitable low-voltage dimming equipment.

Special Features

• AR111 reflector format – 111mm diameter for powerful directional lighting.
• 50W halogen technology – provides bright, warm and high-quality illumination.
• 12V low-voltage operation – suitable for compatible low-voltage lighting systems.
• 24° beam angle – ideal for focused accent and display lighting.
• G53 2-pin base – 53mm pin spacing for compatible AR111 fittings.
• Warm white light – typically around 3000K, depending on the specific lamp manufacturer.
• Excellent colour rendering – halogen technology provides natural-looking colour reproduction.
• Dimmable – suitable for compatible low-voltage dimming systems.
• Directional illumination – well suited to highlighting products, artwork and architectural details.
• Wide range of applications – suitable for retail, hospitality, museums, galleries, exhibitions and residential lighting.
• UV-block options available – some AR111 halogen models incorporate UV-block technology, so this should be confirmed against the exact lamp specification.

Installation Guide

Important: This is a 12V low-voltage lamp and must not be connected directly to a 230/240V mains supply. It must be used with a suitable compatible 12V transformer or power supply.

1. Switch off the power and allow the existing lamp to cool completely before installation.
2. Check compatibility – confirm that the fitting accepts an AR111 lamp with a G53 2-pin base and is suitable for a 50W, 12V lamp.
3. Check the transformer – ensure the existing transformer is suitable for a 12V 50W halogen load. If replacing an existing lamp, check the transformer's minimum and maximum load requirements.
4. Remove the old lamp according to the fitting manufacturer's instructions.
5. Avoid touching the halogen capsule/reflector with bare fingers. Oils from skin can contaminate the lamp surface and may shorten its life. Use a clean, dry cloth or suitable gloves if handling is necessary.
6. Insert the G53 pins into the lamp holder and ensure the lamp is properly seated and secure.
7. Position the lamp so that the 24° beam is directed towards the required area or feature.
8. Restore the power and check that the lamp operates correctly.
9. If using a dimmer, ensure it is specifically compatible with the 12V halogen lamp and transformer.

Installation should be carried out by a suitably qualified person where required. Always follow the instructions supplied with the light fitting, transformer and lamp.
